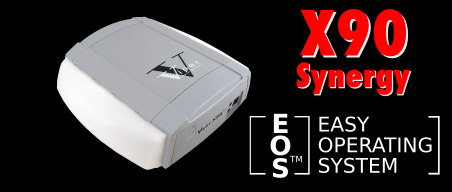

The Amazing Viper X90

The Strongest, Most Quiet Residential Garage Door Operator System

Designed for carriage house, wind-loaded and heavy wood doors. The Viper X90 is a DC (Direct Current) operator with 1000 Newtons of power, making it the strongest residential operator. With the Viper's DC technology, you also get one of the quietest operators. Strength, Quiet, Performance...the best options available!



Two styles of digital remote control transmitters in three different configurations: 2-channel MINI, 4-channel MINI (optional), and 3-channel MICRO (optional) remotes for controlling other devices. Unique, multi-bit technology, LED control button verification.

Modular Multi-Function Wall Station

Provides door operation and convenience from inside the garage. Compact, and stylishly designed to fit in a standard single gang electrical box.

  • Illuminated push-button
  • Security vacation/lock switch
  • Light control
  • Individual control stations can be combined into on solid panel

Wireless Keyless Entry System (WKES)

Convenient and easy-to-use, our wireless keyless entry systems use a 4-digit PIN and controls up to 3 garage doors.

  • Code security
  • Weather resistant
  • Provides temporary access to authorized visitors or service personnel

Specifications & Features

Travel Rate-Main: 5.5 in/sec
Push & Pull Force: 1000 Newton (1 HPS)
Logic Type: Microprocessor with Built-In Surge Suppressor
Limit Settings: Electronic
Display: 8-LED carousel
Dimensions (L x W x H): 14½" x 14⅝" x 6¾"
Lighting: Long-lasting LED lighting   - Why LED?


Viper X90 Manual: Download Here

Safety & Convenience

  • Meets and exceeds all UL325 requirements
  • Easy Operating System (EOS)
  • Infrared photo eye protection system
  • Safety reversal system
  • Manual emergency release in case of power failure
  • On-Command Door Activation (OCDA), programmable "open" intermediate position to vent the garage
  • Energy conservation feature
  • Self-diagnostic system
